Workshop & Facilities

List of Workshop

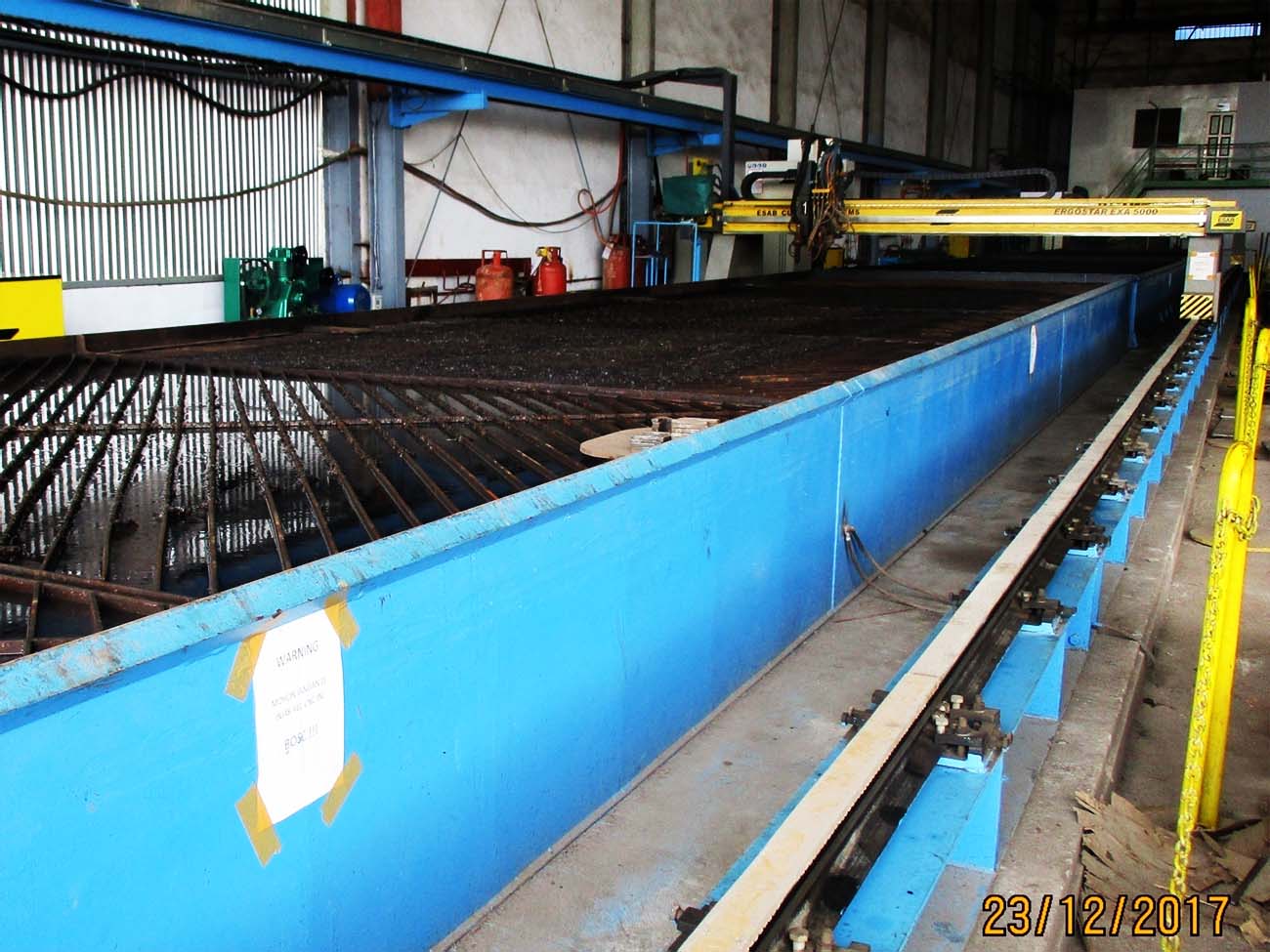

CNC MACHINE
Merk : ESAB
Type : EXA 5000 Voltage
Freq. : 230 V / 50 Hz
Cut. Thickness : 3 to 300 mm
Position Speed : 24.000 mm
Current : 2,0 A
Power : 3 Kva
Quantity : 2 Unit


PLATE BENDING MACHINE
Capacity of Plate Size : 3000 x 12mm


4 Units of 5T Overhead Crane


PRESS MACHINE
Type : HYDRAULIC MACHINE
Max Pressure : 250 kg


ROLL HYDRAULIC MACHINE
Type : HYDRAULIC
Max Roll : Ø 600 MM ( Plate 12 MM ) Ø 1500 MM ( Plate 32 MM )
Cap. Max : 3000 MM


HYDRAULIC IRON WORKER
Type : Q35Y - 40
Punching pres : 2000 kn


MACHINE CUTTING PLATE
Max Roll : Ø 330 MM ( Plate 8 mm )
Cap. Max : Plate, size of 3200 x 14 m

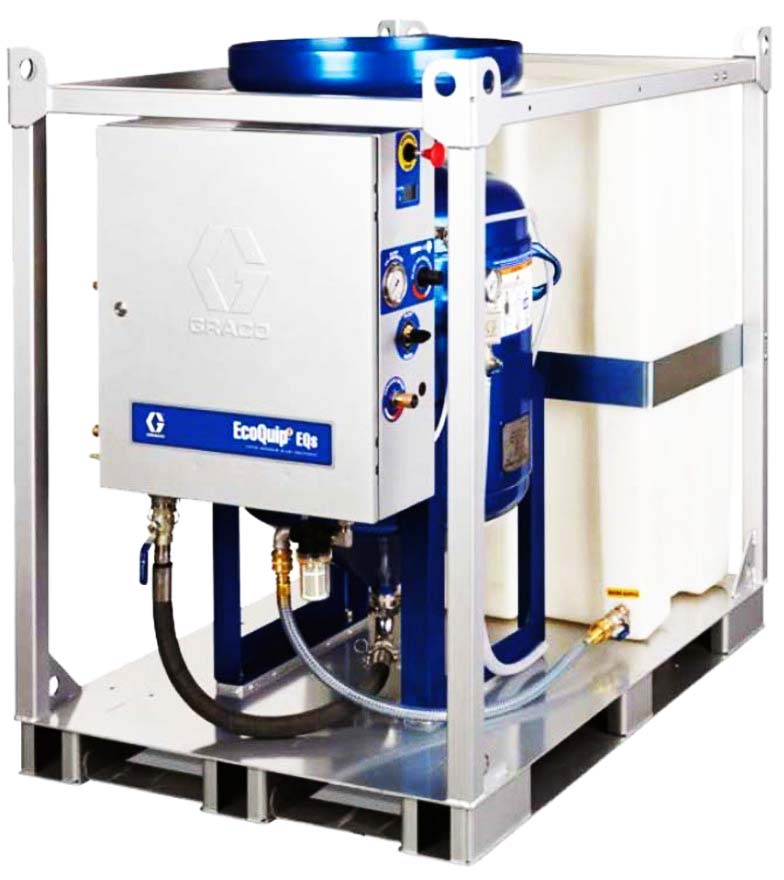

VAPOUR BLAST MACHINE
Merk : GRACO


SPEEDLOCK VACUUM MACHINE

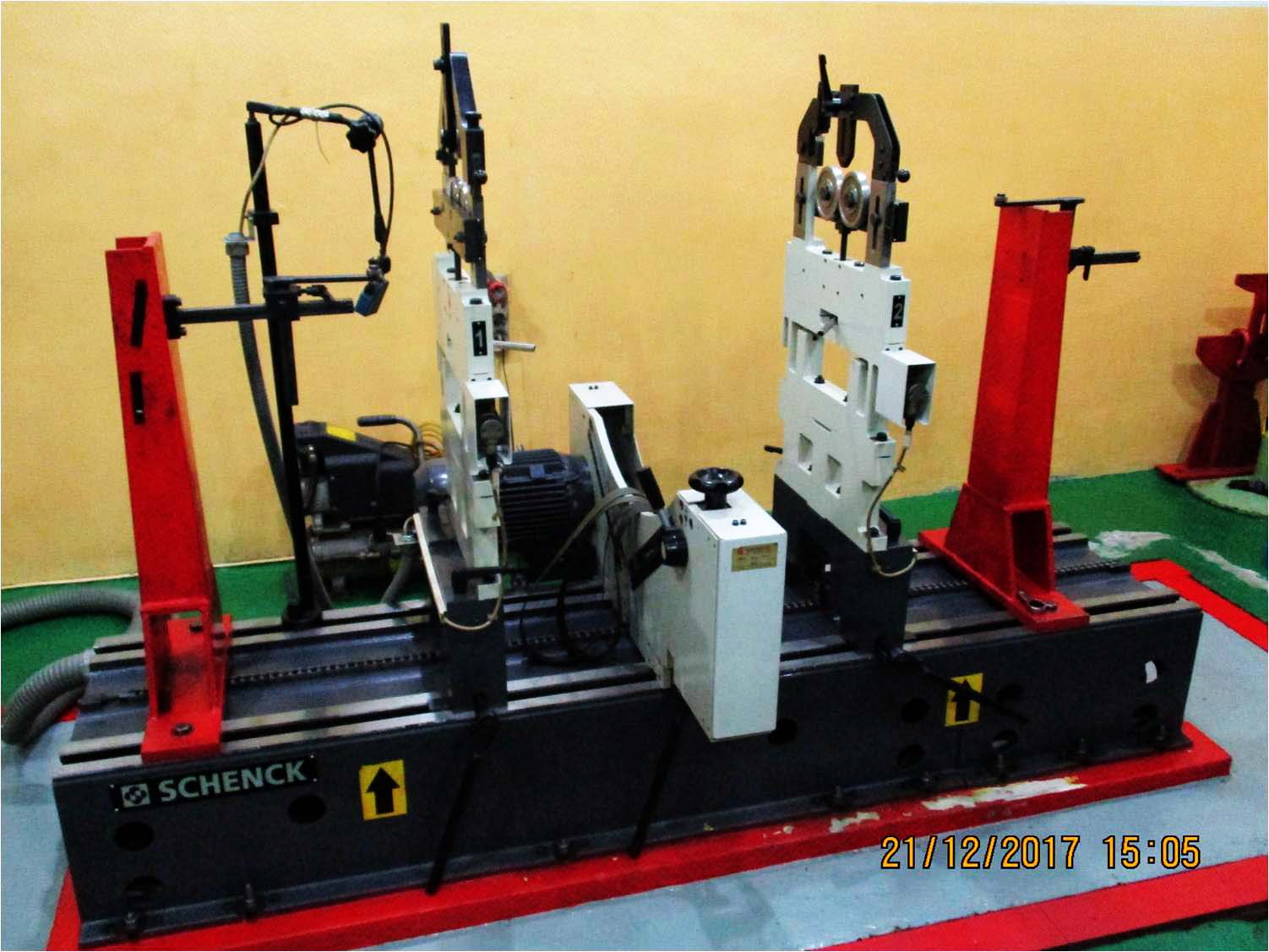

TURBO BALANCING MACHINE
Merk : SCHENCK
Capacity : 700 kg

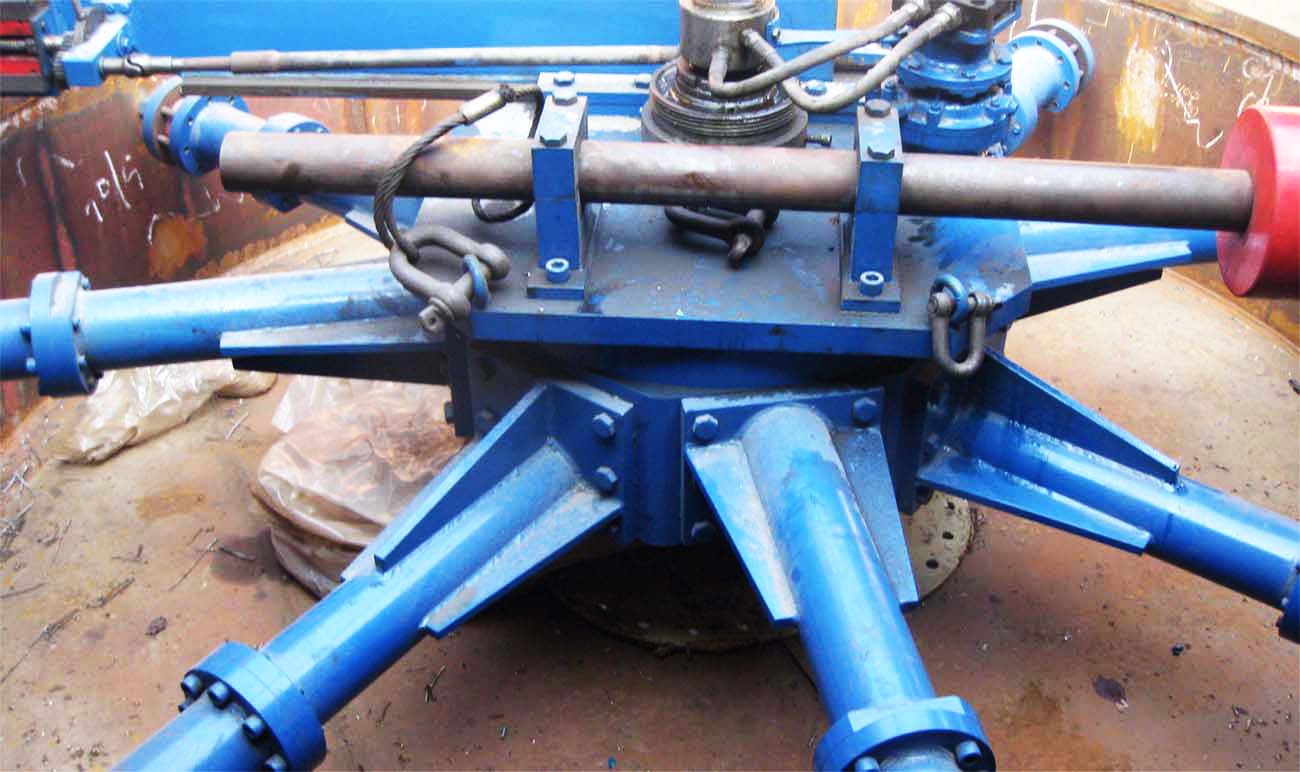

FLANGES FACING MACHINE
Max Dia. : 2000 ~ 3000 mm
Power: 5,5 Kw - 11,84/6,82 A

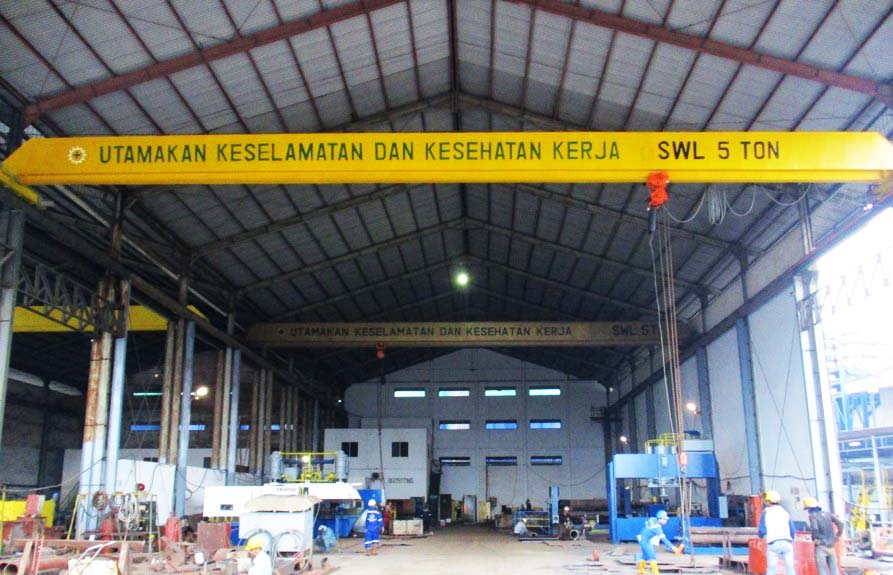

Workshop Dimension : 35 m x 25 m, with 5T overhead crane.


ROUGH TERRAIN CRANE
Various sizes and capacities to cater up to 45 Ton capacity

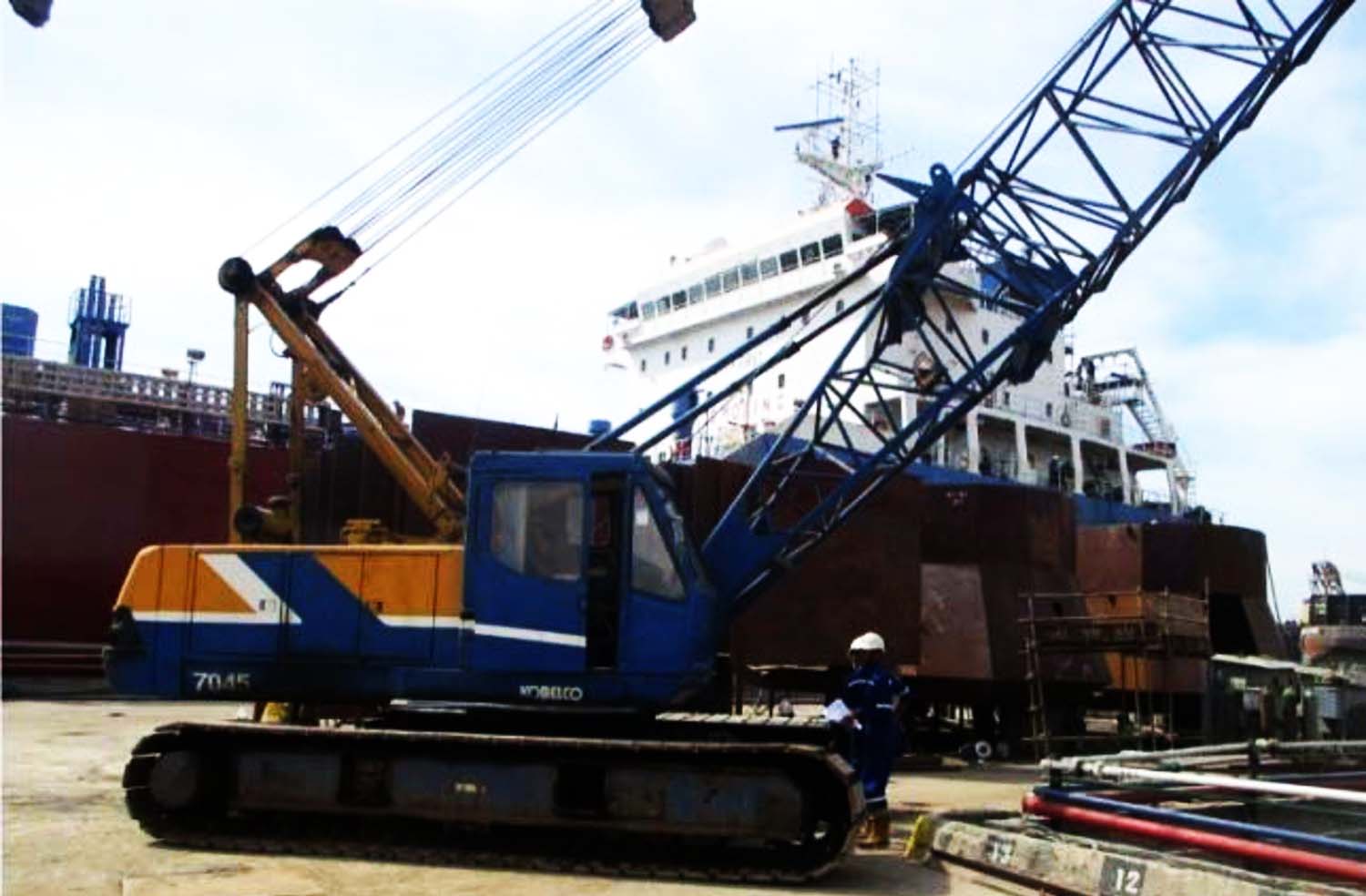

CRAWLER CRANE
Various types of Crawler Crane to support capacity up to 55 Ton


TRAVELLING TOWER CRANE
TC 50 T Potain Capacity : 50 Ton Position : Right Side of Graving Dock-V
TC Simma Capacity : 28 Ton Position : Right Side of Graving Dock - IV
TC Simma Capacity : 10 Ton Position : Behind of Graving Dock - V

MAN GENERATOR SET
To cater up to 2800 KVA / 400+ Volt

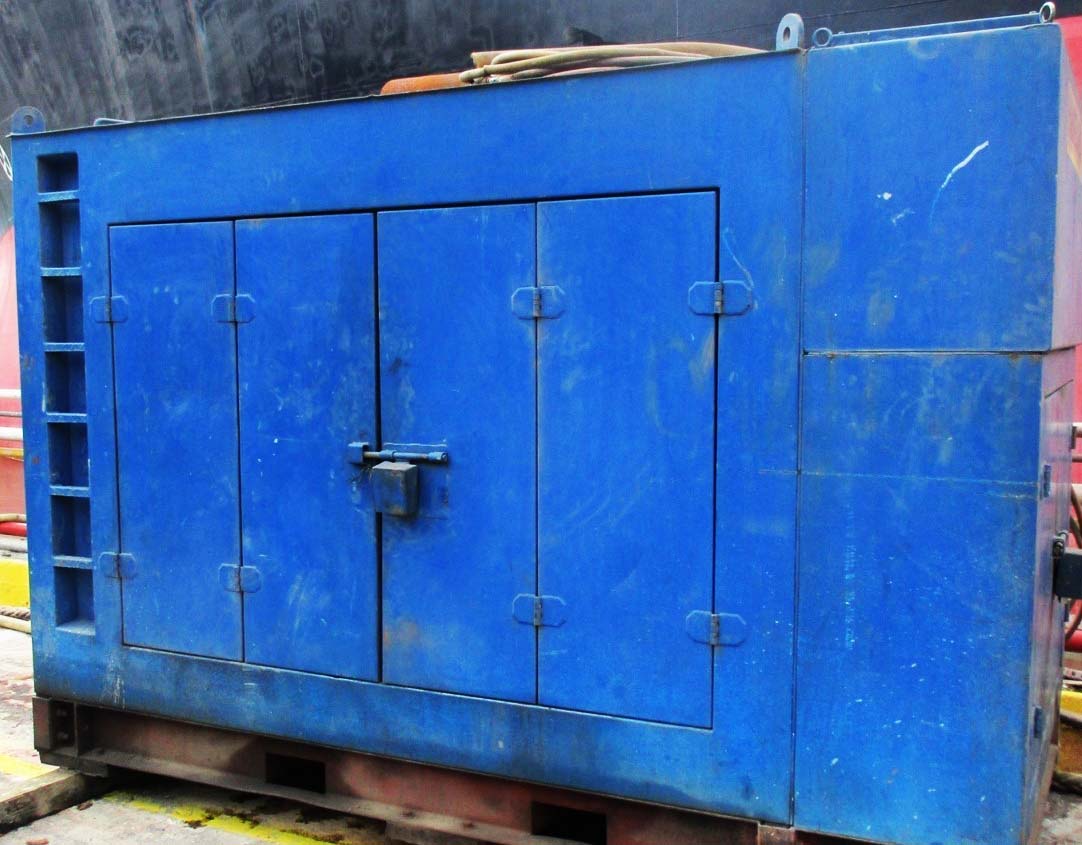

PORTABLE GENERATOR SET
Power : 650 KVA / 380 V & 480 V
Voltage : 380 V & 480 V

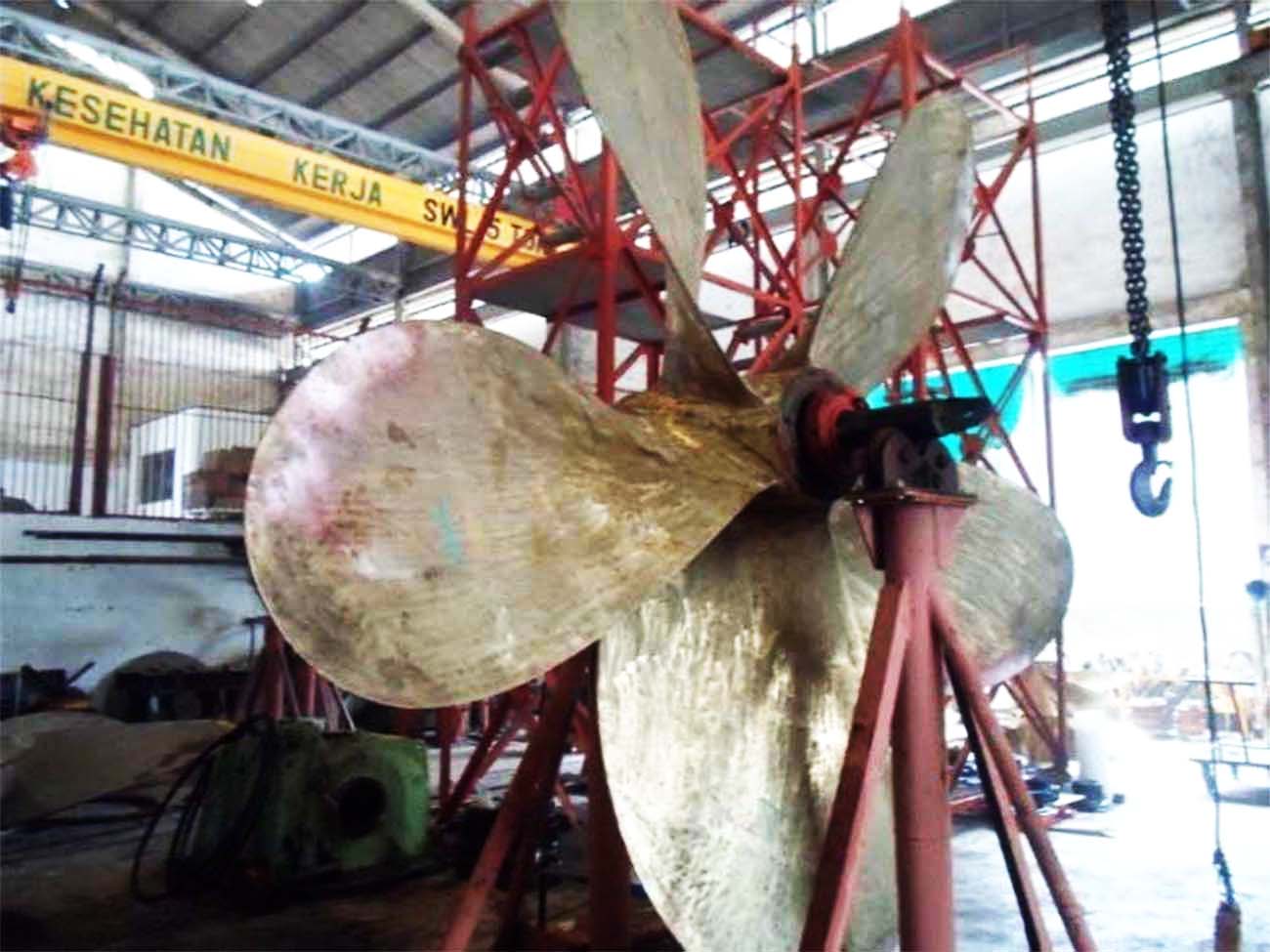

BALANCING PROPELLER
Several sets to cater up to Max Dia. : Ø 3800 MM

Dock Facilities

  • Dock I

    Dock I

    Length : 115.0 Metres Width : 22.5 Metres Depth : 7.5 Metres Capacity : 7000 DWT

    Read more

  • Dock II

    Dock II

    Length : 45.0 Metres Width : 14.0 Metres Depth : 6.5 Metres Capacity : 1000 DWT

    Read more

  • Dock III

    Dock III

    Length : 86.0 Metres Width : 28.0 Metres Depth : 3.6 Metres Capacity : 4000 DWT

    Read more

  • Dock IV

    Dock IV

    Length : 168.0 Metres Width : 28.0 Metres Depth : 8.0 Metres Capacity : 20000 DWT

    Read more

  • Dock V

    Dock V

    Length : 200.0 Metres Width : 37.0 Metres Depth : 9.0 Metres Capacity : 50000 DWT

    Read more

  • Dock VI

    Dock VI

    Length : 125.0 Metres Width : 27.0 Metres Depth : 6.0 Metres Capacity : 10000 DWT

    Read more
